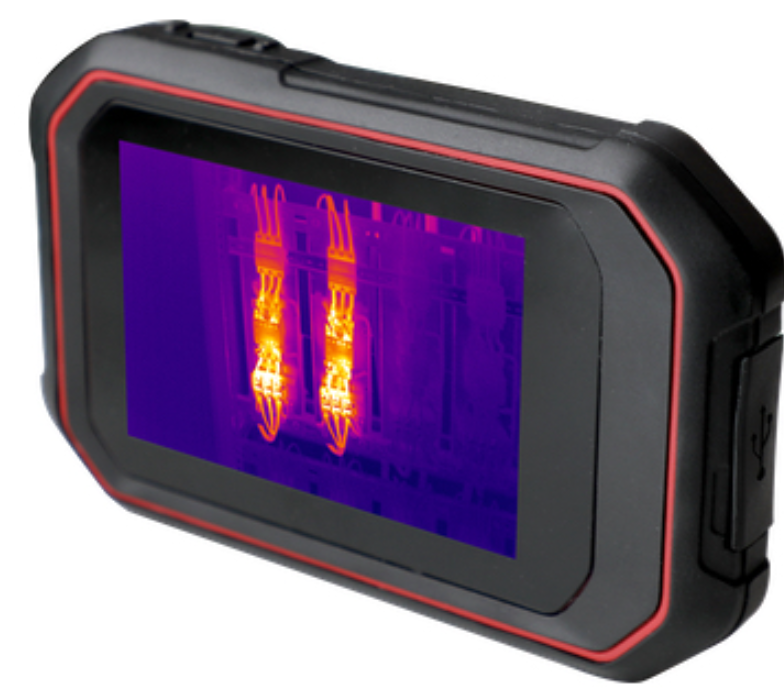

مشخصات دوربین Pocket Thermo C16/C25 به شرح ذیل می باشد:
s |
Pocket Thermo C16 |
Pocket Thermo C25 |
Detector |
||
Type |
Uncooled FPA |
VOx |
Resolution |
160×۱۲۰ |
۲۵۶×۱۹۲ |
Image |
||
Lens |
3.85mm/F1.0 |
6.0mm/F1.0 |
Spatial resolution |
4.4mrad |
2.0mrad |
NETD |
≤۰.۰۶℃@۳۰℃ |
≤۰.۰۵℃@۳۰℃ |
Frame rate |
50Hz |
|
Focal |
Focus free |
|
Spectral range |
8-14um |
|
Display |
||
LCD |
3.5”TFT color LCD, touch screen |
|
Image display |
Infrared image and visible light image can be quickly switched, and infrared image and visible light image can be picture-in-picture and fusion |
|
Palette |
6 kinds of palettes to choose from (including iron red, rainbow, black and white, black and white reverse, etc.) |
|
Image Processing |
Automatic/manual adjustment of contrast and brightness, automatic enhancement mode |
|
Measurement |
||
Measurement range |
-20℃ ~ +۳۵۰℃ |
-۲۰℃ ~ +۶۵۰℃ |
Precision |
±۲°C or ±۲% (reading range), whichever is greater |
|
Temperature measurement correction |
Automatic / manual |
|
Measurement mode |
Real-time movable point, movable area (maximum temperature, minimum temperature, and average temperature measurement), line temperature measurement, temperature alarm (sound, color) |
|
Power system |
||
Batteries |
Rechargeable lithium battery, built-in |
|
Battery working time |
≥۴h |
|
Charging type |
USB charging |
|
Power saving mode |
Automatic sleep and shutdown |
|
Others |
||
Storage |
Built-in 16G |
|
Flashlight |
Support |
|
Gravity sensor |
Yes, the UI automatically turns the direction |
|
Language |
Chinese, English and other languages |
|
Color |
Red & Black |
|
Image format |
JPEG, with infrared raw measurement data images; MPEG4, with infrared raw measurement data images; |
|
Environment |
||
Working temp. |
-15℃~+۵۰℃ |
|
Storage temp. |
-40℃~+۷۰℃ |
|
Humidity |
≦۹۵%(non-condensing) |
|
Encapsulation |
IP66 |
|
Shock resistance |
30G,IEC68-2-29 |
|
Vibration resistance |
2G,IEC68-2-6 |
|
Anti-drop |
2m |
|
Physical |
||
Weight |
200g |
|
Dimension |
135mm×۹۰mm×۲۶mm |
|
Interface |
||
Port |
USB Type C,data transfer and charging |
|
Wifi |
Yes, connecting to the Android App via WiFi, you can analyze and upload data in real time. |
